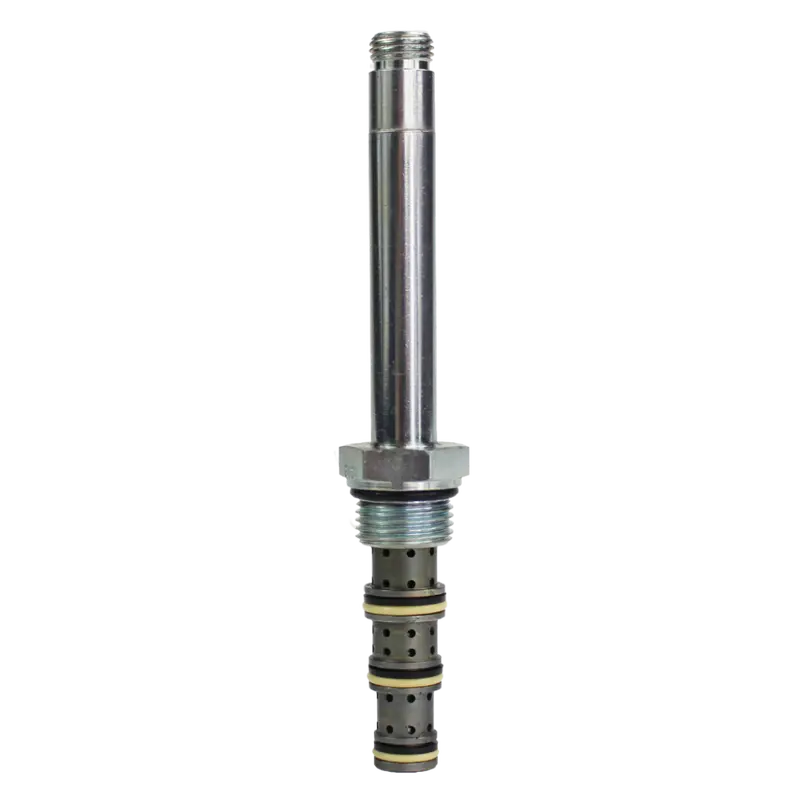

Deltrol DSV-100-34C-N 4-Way 3-Position Solenoid Valve (Closed Center) – C-10-4 Cavity, 3000 PSI, 6 GPM, Coil Not Included

Description

The Deltrol Fluid Products DSV-100-34C Solenoid Directional Four-Way, Three-Position, Closed Center Spool Cartridge Valve offers precise hydraulic control with a three-position, four-way design. In its default, de-energized state, the valve blocks flow at all ports. When the upper solenoid (S1) is activated, it allows flow between ports 2 and 1, and 3 and 4. Activating the lower solenoid (S2) enables flow between ports 4 and 1, and 3 and 2. The valve features a manual override function for manual control, with a knurled knob that adjusts between S1 and S2 functions. With a flow rate of 6 gpm and a maximum pressure of 3000 psi, it ensures robust performance in hydraulic systems.
