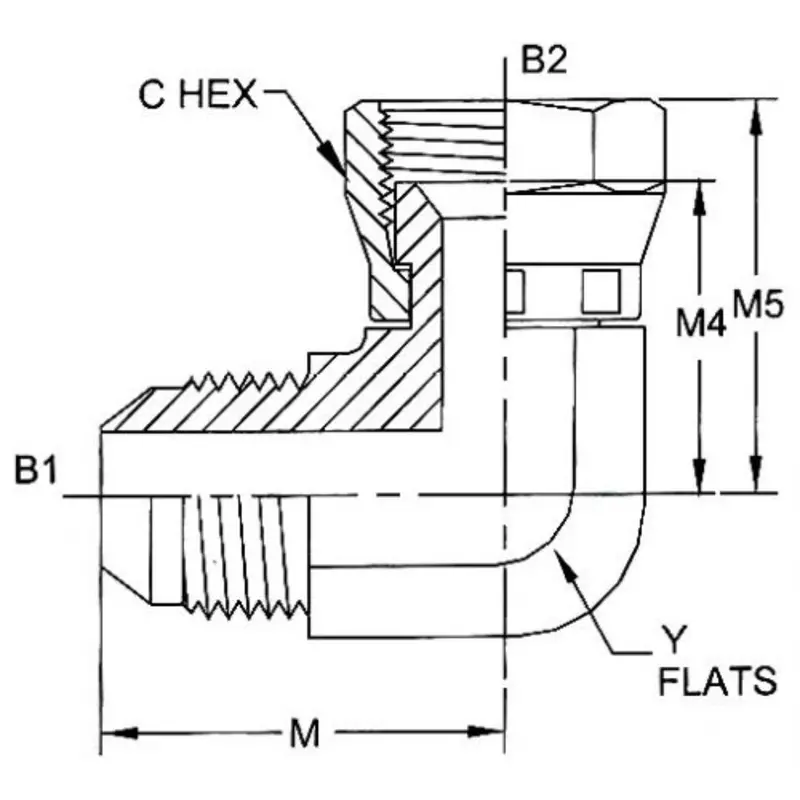

Onehydraulics 90° Steel JIC-to-JIC Adapter: 2-1/2-12 Male JIC × 1-7/8-12 Female JIC, 1500 PSI

Description

The Series 6500 90-Degree Angled Male JIC x Female JIC Swivel adapters are essential components in hydraulic systems, designed to connect hoses and pipes at a right angle. Made from durable carbon steel, these adapters feature SAE J514 JIC/37° hydraulic connections, which are common in fluid power systems. Both the male and female fittings have 37° seats, creating a strong, mechanical seal when the male flared and female coned seats make contact. These adapters provide a secure, leak-free connection and are ideal for high-pressure applications. It’s important to note that while SAE 37° and SAE 45° fittings share the same threads, they have different seat angles—intermixing them can result in leakage.
