Description

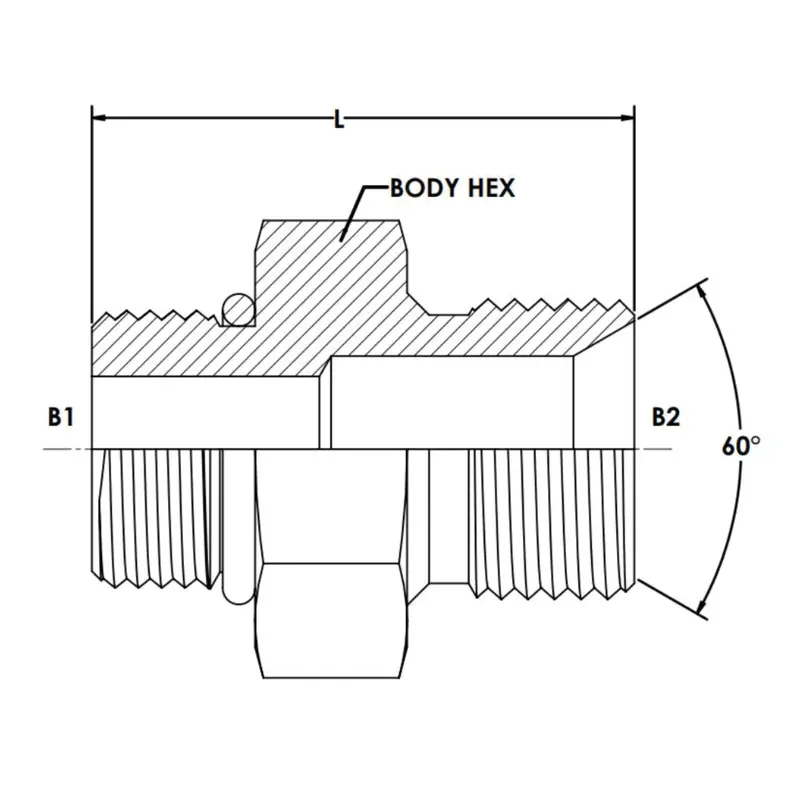

The Series 7062 Straight Male ORB x Male BSPP hydraulic adapters, made from carbon steel, offer a reliable connection for medium to high-pressure hydraulic systems. ORB (SAE Straight Thread O-ring Boss) fittings are designed with a male straight UNF thread and an O-ring that creates a leak-tight seal when compressed into a chamfer on the female connection. This seal ensures optimal performance and leak prevention as recommended by the NFPA. The BSPP (British Standard Parallel Pipe) male connection is similar to the American NPSM but features a different thread pitch, and the seal is made using a combination of metal-to-metal surfaces or an O-ring. These adapters are ideal for fluid power systems where both the ORB and BSPP connections are required, offering strength, durability, and high performance in carbon steel for a wide range of hydraulic applications.
